Buttweld Pipe Reducer(Concentric & Eccentric) Specifications
  •  Outside Diameter: Seamless Pipe Reducer ( 1/2″~24″), ERW / Welded / Fabricated Pipe Reducer (1/2″~48″)
  •  Type: Concentric Reducers, Eccentric Reducers
  •  Wall Thickness: 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
  •  Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
  •  Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Copper, Cupro Nickel, Inconel, Monel, Hastelloy
  •  Manufacturing Standards:
    -> ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43
    -> DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
    -> EN: EN10253-1, EN10253-2
  •  ASTM A403 – ASME SA403 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
  •  ASME B16.9 – Factory-Made Wrought Fittings Buttwelding
  •  ASME B16.25 – Buttwelding Ends ASME B16.28 – Wrought Steel Short Radius Elbows and Buttwelding Returns
  •  MSS SP-43 – Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
  •  Stainless Steel Eccentric/ Concentric Pipe Reducers :ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
  •  Carbon Steel Eccentric/ Concentric Pipe Reducers :ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
  •  Alloy Steel Eccentric/ Concentric Pipe Reducers : ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
  •  Nickel Alloy Eccentric/ Concentric Pipe Reducers : ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
  •  Duplex & Super Duplex Eccentric/ Concentric Pipe Reducers:ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462

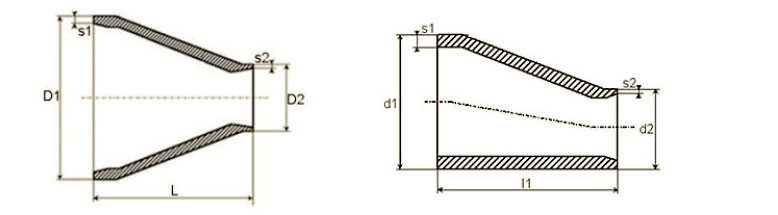

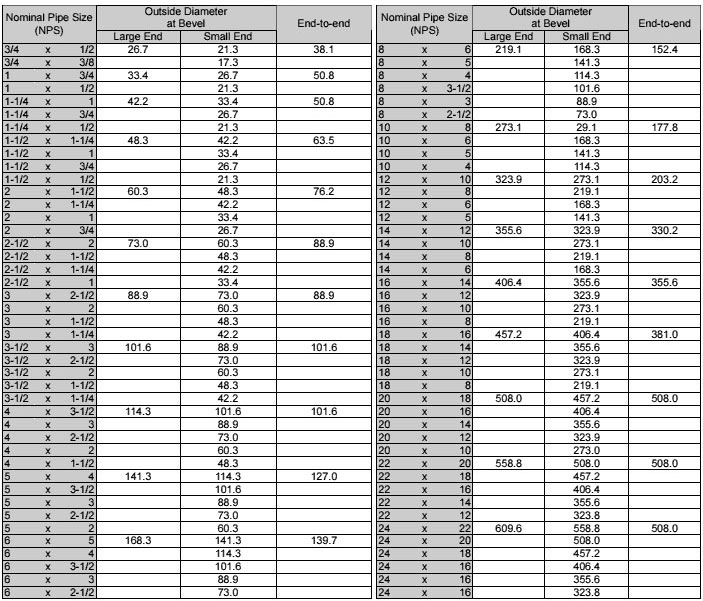

Pipe Reducer Dimensions

Pipe Reducer Dimensions

Pipe Reducer Dimensions

enquiry-button
Type of Pipe Reducer

Type A Reducer, Decreased pressure factor

Same wall thickness on the weld ends and on the fi tting body as for a pipe with the same specifi ed wall thickness. Their resistance to internal pressure is less than that of a pipe with the same diameter, same wall thickness and made of the same grade of steel.

The required calculation methods are based on the calculation standards defined in EN 13480-3

Type B Reducer, Full pressure factor

Increased wall thicknesses on the fi tting body, same resistance to internal pressure as for a pipe with the same diameter, same wall thickness and made of the same grade of steel.

The required calculation methods are based on the calculation standards defined in EN 13480-3

Reducer Marking

Each fitting must be permanently marked.

Marking through hard stamping.

  •  Manufacturer‘s mark or logo
  •  Country of manufacture (ISO-Code)
  •  “EN2” as reference to this standard
  •  “B” for fittings of type B
  •  Steel name or steel number
  •  “W” (for welded fittings or fittings that are manufactured from welded pipes)
  •  Cast number or code number
  •  Mark of the inspection representative
  •  Outside diameter D*
  •  Wall thickness T*
Reducer handling and packaging

EN 10253-2 Fittings & reducer are delivered with or without surface protection at the discretion of the manufacturer.

EN 10253-4 Fittings & reducer are delivered by the manufacturer in normal packaging, without surface protection, and without end protectors (caps). Special packaging, protective coverings, and end protectors (caps) can be agreed.
