Stainless Steel Lag Bolts manufacturers
Industrial Stainless Steel Lag Bolts, A2 Stainless Steel Lag Bolts exporter in India, Marine grade Stainless Steel Lag Bolts, Best price of M2 M4 M5 M6 M8 Stainless Steel Lag Bolts, 10% off for bulk order of 316 Stainless Steel Lag Bolts, Special offer on 18-8 Stainless Steel Lag Bolts
MD Exports LLP is a leading Stainless Steel Lag Bolts manufacturers, suppliers & exporters in India. A trusted company manufacturing and supplying SS Lag Bolts across India & overseas.
A heavy wood screw having a square or hexagonal head driven by a wrench also called coach screw, lag bolt. These stainless steel hex head lag screws are some of the toughest fasteners. Stainless Steel Lag Bolts is a type of mechanical fastener that is usually used with a nut or washer nut for connecting two or more parts. A bolted joint can be readily disassembled and reassembled; for this reason bolts or screw fasteners are used to a greater extent than any other type of mechanical fastener and have very important role in the development of mass-produced articles and steel structures. Our extensive range of high quality fastenings in A4 /316 stainless steel Lag Bolts are specially suited to marine, swimming pool and other high corrosion applications.

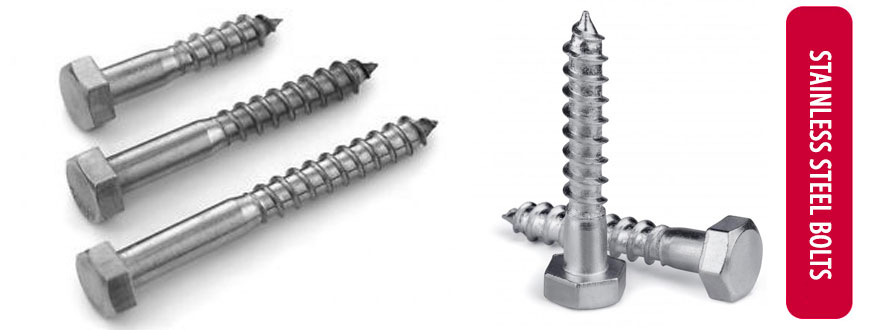

Stainless Steel Lag Bolts
ASTM A193 / A194 Stainless Steel Lag Bolts Specification
| Product name | Stainless Steel Lag Bolts |
|---|---|
| Place of Origin | India |
| Standard | ISO 4017, DIN931, GB5783, DIN, ASTM, ANSI, JIS, EN, AS |
| DIN Standard | B.S. DIN933 DIN931 DIN934 DIN912 DIN603 DIN6923 |
|
Passivation /plain |
| Stainless Steel Lag Bolts Size | M2 – M100 |
| Stainless Steel Lag Bolts Diameter | M3-M60 |
| Stainless Steel Lag Bolts Length | 6mm-500mm |
| Head | Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc |
| Neck type | Hex, Square, Triangular, Oval & Knurled etc |
| Drive type | Phil, Slotted, Hex socket, Torx & square slot etc |
| Stainless Steel Lag Bolts Application | Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry |
| Dimensions | ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded. |
| Drive Style |
Type I |
| Stainless Steel Lag Bolts Material | 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70; A4-70; A4-80 |
| Thread Requirements | ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge) |
| Finish | Per ASTM A380/A380M |
| Finishing | Zinc Plated (Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test |
| Stock Products | Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Lag Bolts, Example: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912 |
| Production technology | Cold Forged |
| Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| MOQ | 10 pieces |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Others | OEM, ODM, ±0.03MM tolerance |
| Surface treatment of stainless steel Lag Bolts |
|
| Coatings | Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request |
| Tolerance of stainless steel Lag Bolts | +/-0.01mm to +/-0.05mm |
| Samples | Yes |
| Production Capacity | 2,700,000 pieces per month |
| Payment Terms | T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping |
You might be interested in related types of Stainless Steel Lag Bolts
Stainless Steel Lag Bolts grades:
Stainless steels are used for their corrosion resistance, high-temperature strength, scaling resistance, and low-temperature toughness. These properties account for their extremely wide use in practically every industry. Austenitic Stainless Steels are designated by a 3 digit SAE Stainless Steel Grade beginning with the number 3 (e.g. 304, 316). Another common naming convention for Austenitic Stainless Steels are 18/8, 18/10, 18/0, etc. where the 18 refers to the % of Chromium and 8 to % of Nickel contained in the material.
- 18-8 Stainless Steel Lag Bolts
- 410 Stainless Steel Lag Bolts
- 304 Stainless Steel Lag Bolts
- 304L Stainless Steel Lag Bolts
- 304H Stainless Steel Lag Bolts
- 310 Stainless Steel Lag Bolts
- 316 Stainless Steel Lag Bolts
- 316H Stainless Steel Lag Bolts
- 316L Stainless Steel Lag Bolts
- 317 Stainless Steel Lag Bolts
- 317L Stainless Steel Lag Bolts
- 321 Stainless Steel Lag Bolts
- 347 Stainless Steel Lag Bolts
- 904L Stainless Steel Lag Bolts

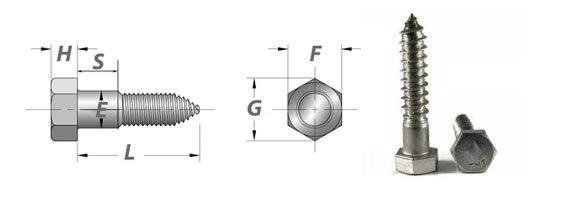

Stainless Steel Lag Bolts Dimensions
Dimensions for Stainless steel Lag Bolts

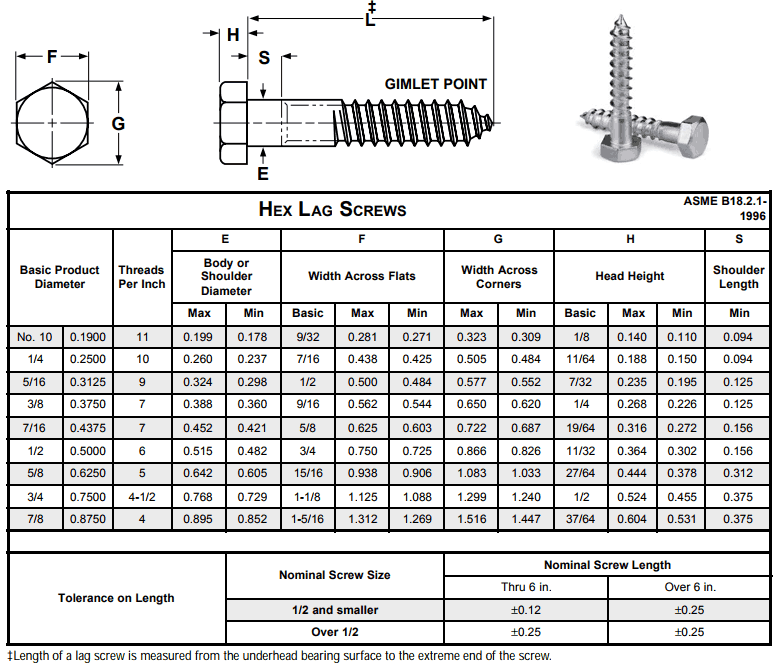

| Hex Lag Screws: Dimensions (ASME B18.2.1-1996) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Basic Product Diameter |
Threads Per Inch | Body or Shoulder Diameter (E) | Width Across Flats (F) | Width Across Corners (G) | Head Height (H) | Shoulder Length (S) | |||||||
| Max | Min | Basic | Max | Min | Max | Min | Basic | Max | Min | Min | |||
| #10 | .1900 | 11 | .199 | .178 | 9/32 | .281 | .271 | .323 | .309 | 1/8 | .140 | .110 | .094 |
| 1/4 | .2500 | 10 | .260 | .237 | 7/16 | .438 | .425 | .505 | .484 | 11/64 | .188 | .150 | .094 |
| 5/16 | .3125 | 9 | .324 | .298 | 1/2 | .500 | .484 | .577 | .552 | 7/32 | .235 | .195 | .125 |
| 3/8 | .3750 | 7 | .388 | .360 | 9/16 | .562 | .544 | .650 | .620 | 1/4 | .268 | .226 | .125 |
| 7/16 | .4375 | 7 | .452 | .421 | 5/8 | .625 | .603 | .722 | .687 | 19/64 | .316 | .272 | .156 |
| 1/2 | .5000 | 6 | .515 | .482 | 3/4 | .750 | .725 | .866 | .826 | 11/32 | .364 | .302 | .156 |
| 5/8 | .6250 | 5 | .642 | .605 | 15/16 | .938 | .906 | 1.083 | 1.033 | 27/64 | .444 | .378 | .312 |
| 3/4 | .7500 | 4-1/2 | .768 | .729 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 1/2 | .524 | .455 | .375 |
| 7/8 | .8750 | 4 | .895 | .852 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 37/64 | .604 | .531 | .375 |
Stainless Steel Hex Lag Bolts Dimensions
Check Stainless Steel Lag Bolts Dimensions full Catalog
SS Lag Bolts Weight Chart
Weight Chart for Hexagon Bolts & Nuts
DIN 931 & DIN 934
Approximate weights in kilograms (Kg’s) each
Stainless Steel Lag Bolts Price List
Stainless Steel Lag Bolts Price List, Stainless Steel Lag Bolts Prices, Stainless Steel Lag Bolts Price, Stainless Steel Lag Bolts Price List, Stainless Steel Lag Bolts Price 2018, Stainless Steel Lag Bolts Price in India, SS Lag Bolts Price India, we offer best price of 18-8 Stainless Steel Lag Bolts & 316 Stainless Steel Lag Bolts
- M36 size stainless steel a2 50 zinc plated hex lag bolt
Price: US $600-1400 / Ton
1 Ton (Min. Order) - Solar Fastener 18-8 Stainless Steel Hex Lag Bolt
Made In China DIN931 Stainless Steel Hex Lag Bolts
Price: US $0.01-0.1 / Pieces
10000 Pieces (Min. Order) - Made in Taiwan Coated Steel Stainless Steel Hex head Zinc Lag Bolt
Price: US $0.01-0.1 / Unit
10000 Units (Min. Order) - Factory Supply COACH SCREWS HEX HEAD LAG BOLTS WOOD SCREW BOLT DIN571
Price: US $0.02-0.2 / Piece
1 Piece (Min. Order) - Made in Taiwan External Stainless Steel Galavanized Zinc Hex Head Lag Bolt
Price: US $0.01-0.1 / Unit
10000 Units (Min. Order) - Astm A193 B8 Stainless Steel T Hex Lag Screw Half Thread Hanger A325 Heavy Cylinder Head Bolt Manufacturer
Price: US $0.001-10 / Piece
1000000 Pieces (Min. Order) - stainless steel countersunk head hex lag bolt
Price: US $0.01-1 / Piece
1000 Pieces (Min. Order) - wholesale Stainless steel wood screw
Price: US $0.01-1 / Piece
100 Pieces (Min. Order) - DIN 571 half thread stainless steel wood hex head lag bolt
Price: US $0.1-0.5 / Piece
1 Piece (Min. Order) - Hot Dipped Galvanized Hex Lag Screw Bolt 1/2 x 6"
Price: US $0.0001-0.09 / Piece
100000 Pieces (Min. Order) - black zinc lag screws stainless steel flange bolts hex bolts and nuts
Price: US $0.01-0.1 / Piece
3000 Pieces (Min. Order) - stainless steel 304 316 din 571 hex head lag bolts
Price: US $0.023-0.059 / Piece
20000 Pieces (Min. Order) - stainless steel 304 hex lag bolt 304/316 Big Size Hex Bolt Plain Finish DIN933 hex bolt 4.8 8.8
Price: US $550.0 / Piece
1 Piece (Min. Order) - Stainless steel DIN571 Hex Lag Bolt
Price: US $0.0785-0.1 / Piece
1 Piece (Min. Order) - stainless steel hex head flange wood screw lag bolt
Price: US $0.001-0.86 / Piece
1 Piece (Min. Order) - stainless steel 304 hex lag bolt
Price: US $0.01-5 / Piece
20 Kilograms (Min. Order) - Stainless Steel Hex Lag Bolt by dongguan factory
Price: US $0.01-1 / Piece
1000 Pieces (Min. Order) - hex head bolts a4-70
1 Unit (Min. Order) - SQUARE BOLTS
Price: US $1-1000 / Unit
10 Units (Min. Order) - high quality ASME B18.2.1 stainless steel hex lag bolts of all the sizes available
Price: US $0.0072-0.008 / Kilograms
500 Kilograms (Min. Order) - 18-8 Stainless steel hex head wood screw lag bolts
Price: US $0.01-10 / Piece
100000 Pieces (Min. Order) - Hex head lag screw/bolt
Price: US $0.001-0.01 / Piece
500 Pieces (Min. Order) - Lag Screws for Wood/Lag Bolt/ ASME18.2.1 Lag Bolt Plated Dacroment
Price: US $0.005-0.5 / Piece
10000 Pieces (Min. Order) - Hot sale DIN 571 half thread zinc plated wood Hex Head Lag Screw Bolts
Price: US $0.01-3 / Piece
1000 Pieces (Min. Order) - LEITE Standard Size Stainless Steel Hexagon Bolt And Nuts Made In China
Price: US $0.05-0.1 / Piece
1000 Pieces (Min. Order) - Bolts Nuts Hardware Fasteners High Strength Performace Hex Lag Bolts
Price: US $0.01-0.68 / Piece
10000 Pieces (Min. Order) - Hex Flange Bolt Manufacturing Machinery Pricet Bolt And Nut , Stainless Hex Screw
Price: US $0.01-1 / Piece
100 Pieces (Min. Order) - bearing hot dipped galvanized hex lag screw bolt 3/4 x 16" – 20/pcs bulk box
Price: US $0.01-0.2 / Piece
1000 Pieces (Min. Order) - DIN571 HEXAGON LAG SCREW BOLT
Customs Data
Price: US $10-100 / Unit
500 Units (Min. Order) - DIN571 stainless steel wood screws stainless steel lag bolts
Price: US $0.01-0.1 / Piece
1 Piece (Min. Order) - Galvanized Carbon Steel Hex Wood Screws/Lag bolts M16x120
Price: US $0.01-1 / Piece
1000 Pieces (Min. Order) - Galvanzied Steel Hex Lag Bolt
Price: US $0.001-1 / Piece
500 Kilograms (Min. Order) - stainless steel screws and fasteners:screws,bolts,nuts,washers
Price: US $0.001-0.1 / Piece
10000 Pieces (Min. Order) - Made in China assorted hex head wood screws/lag bolts
Price: US $0.01-10 / Piece
10000 Pieces (Min. Order) - High quality astm a307 hex bolt/carbon steel/DIN
Price: US $0.01-1 / Piece
1 Piece (Min. Order) - Hex Lag Bolt
Price: US $0.1-2 / Piece
100 Pieces (Min. Order) - External Hex Head Thin Rod Lag Screws High Quality Connecting Bolts
Price: US $0.001-0.01 / Piece
1 Piece (Min. Order) - plain finish cylinder head bolt for steel roof construction
Price: US $1050-1500 / Ton
1 Ton (Min. Order) - Chinese manufacturer round head square neck bolt stainless steel lag bolts
Price: US $0.25-1.32 / Piece
1000 Pieces (Min. Order) - Hot Dip Galvanized Square Head Machine Bolts With nuts
Price: US $0.1-1 / Piece
500 Pieces (Min. Order) - Hot new best Choice hot dipped galvanized hex lag screw bolt
Price: US $0.5-5 / Piece
100 Pieces (Min. Order) - Cap screw bolts with nuts
Price: US $1.5-3 / Milligram
500 Milligrams (Min. Order) - high precision dacromat serrated Hex Washer Lag Bolts
Price: US $0.01-0.02 / Piece
50000 Pieces (Min. Order) - carbon steel 1-1/8 hex bolt grades 10.9 lag bolts
Price: US $0.02-200 / Piece
10 Pieces (Min. Order) - dia 10-30mm half thread din931 iso4014 stainless hex head bolt
Price: US $0.1-0.5 / Piece
3000 Pieces (Min. Order) - Hex head lag bolt
10000 Pieces (Min. Order) - Truck Spare Parts for sale-Connecting Rod Bolt
Price: US $2-9 / Unit
100 Units (Min. Order) - lag bolt sizes
Price: US $0.0028-0.067 / Piece
100 Pieces (Min. Order) - black lag hex bolts din571
Price: US $0.01-10 / Piece
5000 Pieces (Min. Order)
Stainless Steel Lag Bolts For Sale
We have more than 18,000 products in stock. Order by the piece, bag or in bulk.
Stainless Steel Bolts Inventory
- Specialized in
- SS 304 Lag Bolts
- SS 304L Lag Bolts
- SS 316 Lag Bolts
- SS 316L Lag Bolts
- SS 410 Lag Bolts
SS Bolts Inventory
Shoulder Stud Bolts Inventory
Shoulder Nut Eye Bolts Inventory
Stainless Steel Shoulder Nut Eye Bolts
Turned Eye Bolts & Wire Eye Bolts Inventory
Machinery Eye Bolts Inventory
Regular Nut Eye Bolts
Metric Eye Bolts Inventory
SS Bolt Ready Stock
- 10% Discount on:
- SS 310 Lag Bolts
- SS 202 Lag Bolts
- SS 347 Lag Bolts
- SS 321 Lag Bolts
- SS 321H Lag Bolts
Long Tangent U-Bolts
Round U-Bolts
Carriage Bolts
Square Head Bolts
A193 B7 Cadmium Plated Stud Bolts
Xylan® Coated Stud Bolts
Carriage Bolts
ARP High Strength Stainless Steel 12-Point Flange Bolts Price
Stainless Steel Lag Bolts DIN Grades available
- DIN 186 A – Tee-Head Bolts With Square Head
- DIN 188 – Tee-Head Bolts With Double Nip
- DIN 444 A – Eye Bolts
- DIN 478 – Square Head Bolts
- DIN 479 – Square Head Bolts
- DIN 480 – Square Head Bolts
- DIN 529 A – Anchor Bolts (Stone Bolt)
- DIN 529 B – Anchor Bolts (Stone Bolt)
- DIN 529 C – Masonry Bolts With Hexagon Nuts
- DIN 529 D – Anchor Bolts (Stone Bolt)
- DIN 529 E – Foundation Bolts With Hexagon Nuts
- DIN 529 F – Anchor Bolts (Stone Bolt)
- DIN 529 G Bolt
- DIN 558 – Fully Threaded Maching Bolts
- DIN 580 – Lifting Eye Bolts
- DIN 7969 – Slotted countersunk head bolts with hexagon nut for steel structures
Stainless Steel Lag Bolts
- DIN 601- Hexagon head bolt with nut
- DIN 603 Mu – Carriage Bolts With Hexagon Nuts
- DIN 604 – Flat Countersunk Nip Bolts With Hex Nuts
- DIN 605 – Flat Countersunk Square Neck Bolts
- DIN 607 – Round Head Nip Bolts With Nuts
- DIN 608 – Countersunk Square Bolts (Short Neck)
- DIN 609 – Hex Fitting Bolts w/long Threaded Portion
- DIN 610 – Hex fitting Bolts w/short Threaded Portion
- DIN 3570 – U Bows U Bolts
- DIN 6914 – Hex Bolts For High Strength Struct. Bolting
- DIN 6915 – Hex Nuts For High Strength Struc. Bolting
- DIN 6916 – Washers For High Strength Structural Bolting
- DIN 6921 – Hex Flange Bolts
- DIN EN 1665 Hexagon bolts with flange – heavy series(Replace DIN 6922)
- DIN 7968 – Hexagon fit bolts with hexagon nut for steel structures
Packing of Stainless Steel Lag Bolts
We export these Stainless Steel Lag Bolts globally such as Peru, United States, Philippines, Canada, United Kingdom, United Arab Emirates, Singapore, Malaysia, Saudi Arabia, Indonesia, Thailand, Pakistan, Qatar, Australia, South Korea, South Africa, Iran, Turkey, Italy, Germany, Oman, Taiwan, Nigeria, Vietnam, Egypt, Mexico, Spain, Bahrain, Kuwait, Hong Kong, Netherlands, Bangladesh, Israel, Poland, Brazil, Norway, Sri Lanka, New Zealand, France, Finland, Romania, Denmark, Japan, Belgium, Russia, Kenya, Ireland, Greece, Portugal, Hungary, Serbia, Croatia, Bulgaria, Venezuela, Lithuania, Myanmar (Burma), Colombia, Azerbaijan, Iraq, Brunei, Laos, Cambodia, China, Czech Republic, Algeria, Chile and Croatia.
We have a wide network in India & overseas to supply urgent delivery of SS Lag Bolts including Mumbai, Courbevoie, Faridabad, Chiyoda, Bangkok, Perth, Sharjah, Ahvaz, Ankara, Nashik, Petaling Jaya, Rajkot, Jakarta, Seoul, Al Khobar, Madrid, Calgary, Santiago, Lahore, Cairo, Gurgaon, Noida, Surat, Visakhapatnam, Navi Mumbai, Brisbane, Lagos, Karachi, Port-of-Spain, Thane, Houston, New Delhi, Ho Chi Minh City, Kolkata, Ernakulam, La Victoria, Dubai, Abu Dhabi, Melbourne, Sydney, Caracas, Doha, Vung Tau, Dammam, Kuala Lumpur, Geoje-si, Ludhiana, Secunderabad, Hong Kong, Mumbai, Milan, Bogota, Indore, Montreal, Toronto, Vadodara, Hyderabad, Nagpur, Thiruvananthapuram, Coimbatore, Kuwait City, Manama, Los Angeles, Pune, Bengaluru, Dallas, Mexico City, Kanpur, Jaipur, Aberdeen, Jamshedpur, Bhopal, Jeddah, Hanoi, Riyadh, Baroda, Chennai, Ahmedabad, Ranchi, Algiers, Moscow, Granada, Busan, New York, Rio de Janeiro, Singapore, Edmonton, Al Jubail, London, Chandigarh, Colombo, Howrah, Ulsan, Atyrau, Pimpri-Chinchwad, Muscat, Haryana, Istanbul, Gimhae-si & Tehran.
